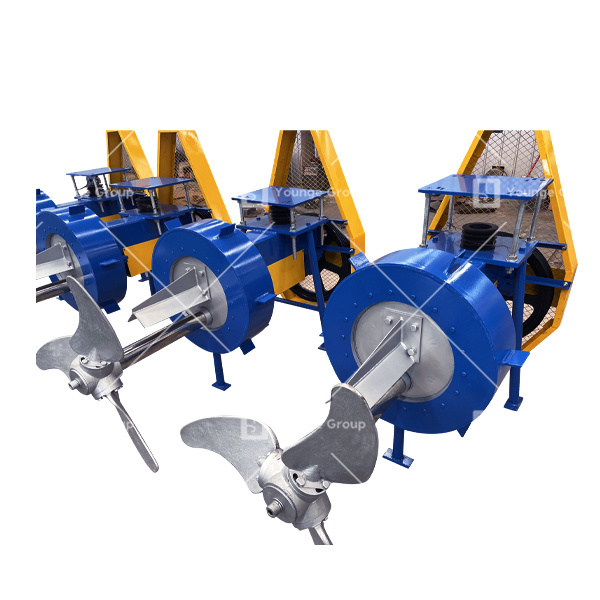

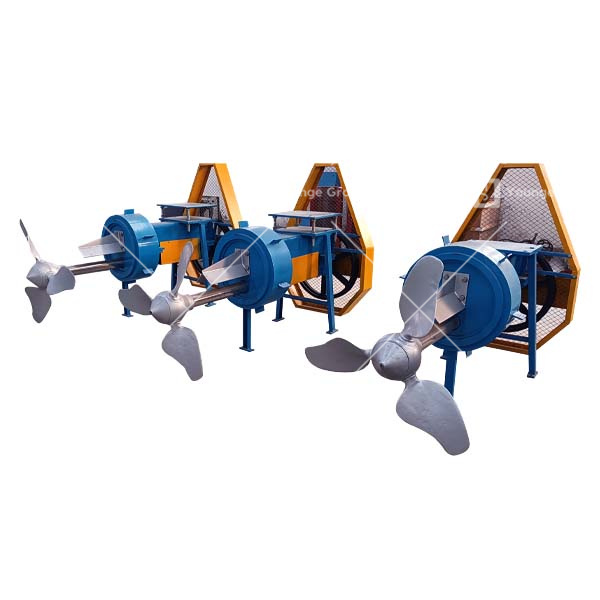

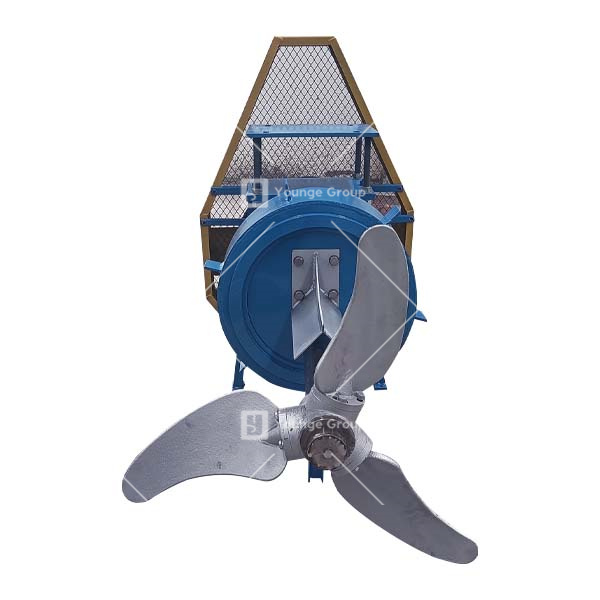

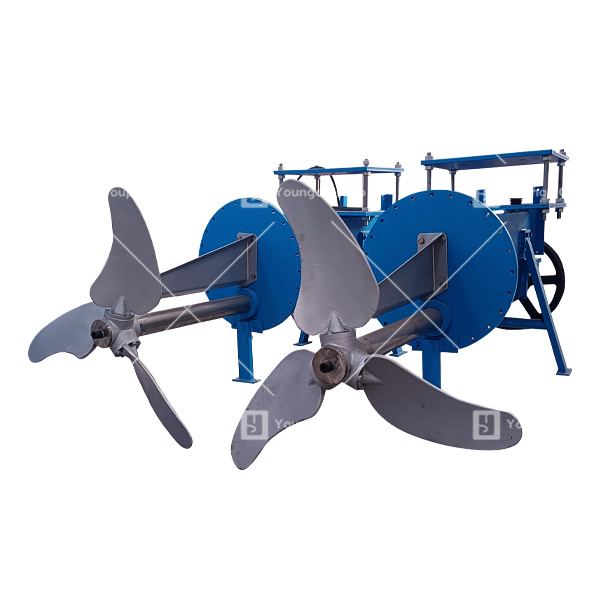

It is suitable for mixing pulp with different concentration in pulp tower, round pulp tank and square pulp tank. The utility model is hung on the pool wall with a flange, and does not need to be fixed with a cement foundation. The utility model has the advantages of small floor area, convenient installation and the energy consumption is low.
Advanced blade design, strong thrust, and according to different concentrations and pulp adjustment angle, wide range of application.
The pulp is evenly stirred and the unit energy consumption is low.
| Model | ZJB600 | ZJB800 | ZJB1000 | ZJB1300 | ZJB1600 |
| Impeller diameter (mm) | 600 | 800 | 1000 | 1300 | 1600 |
| Pulp consistency (%) | ≤4.5 | ||||
| Volume of pulp chest (m³) | 20-50 | 50-80 | 80-120 | 100-150 | 150-250 |
| Motor Power(kW) | 5.5-11 | 5.5-15 | 11-30 | 30-55 | 55-90 |
