It is mainly used to separate the long and short fibers in the pulp during the pulping process.
It is mainly used to separate the long and short fibers in the pulp during the pulping process. The classified long and short fibers can be used to produce different paper varieties. Even within the same variety, it is possible to refine only the long fiber slurry after classification, and then mix the long and short fibers to obtain a higher quality slurry.
The multi-rotor rotor structure ensures the consistency of the speed of fibers passing through the screen slots throughout the height of the screen drum, effectively overcoming the thickening phenomenon. Reasonable shell distribution design enables uniform fluidization pulses in the screening area, high processing concentration, and obvious fiber classification effect. The grading ratio is adjustable and remains stable.

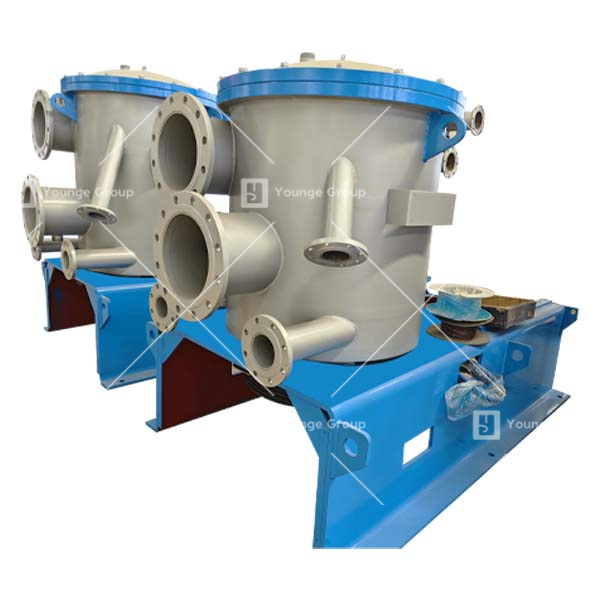

Fiber fractionating screen
| Type | FFS300 | FFS400 | FFS500 | FFS600 | FFS700 |
| Screen area :m² | 1.2 | 2 | 3.2 | 4.1 | 4.8 |
| Screen consistency:% | 0.8-2 | ||||
| Width of screen slot:mm | 0.12-0.4 | ||||
| Power of motor:kw | 45 | 90 | 110 | 160 | 200 |
Fine screen
| Type | FS100 | FS200 | FS300 | FS400 | FS500 | FS600 | FS700 |
| Screen area :m² | 0.6 | 0.8 | 1.2 | 2 | 3.2 | 4.1 | 4.8 |
| Screen consistency:% | 0.8-2 | ||||||
| Width of screen slot:mm | 0.12-0.4 | ||||||
| Power of motor:kw | 30 | 37 | 45 | 90 | 110 | 160 | 200 |
