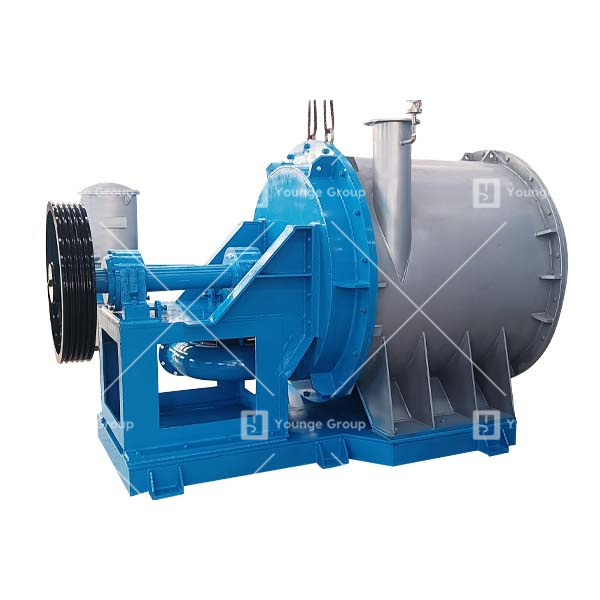

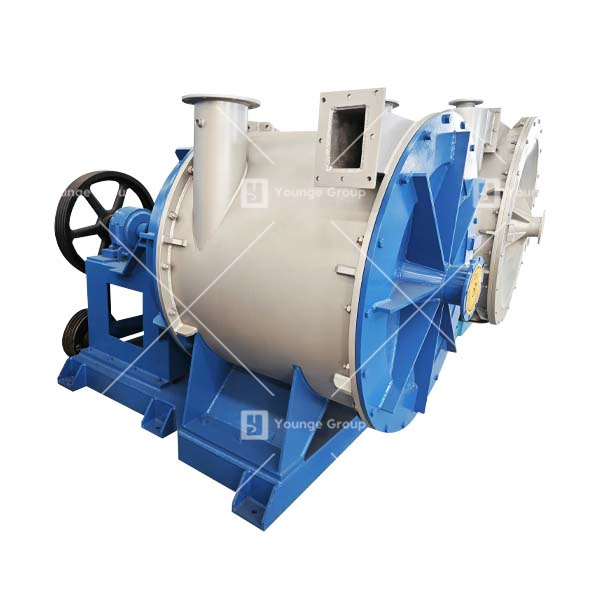

Fiber separator is used for secondary breaking and screening of waste paper pulp in paper pulp system, meanwhile, separating the light and heavy impurities from the pulp. The screen plate hole of the device can be increased, which improves the production capacity.
Fiber separator is used for secondary breaking and screening of waste paper pulp in paper pulp system, meanwhile, separating the light and heavy impurities from the pulp. The screen plate hole of the device can be increased, which improves the production capacity.
It is mainly used for secondary desilting and screening of waste paper, separation of light and heavy impurities in pulp, as well as tailing treatment equipment.
The impeller with special shape can effectively disperse the fiber and facilitate the separation and removal of heavy impurities.
Automatic slag discharge can be set according to the requirements, and the action is reliable.
| Model | DFD2 | DFD3 | DFD4 | DFD5 | DFD6 | DFD7 |
| Inlet Consistency (%) | 2-4 | |||||
| Pressure of Input Pulp(Mpa) | 0.15-0.20 | |||||
| Production Capacity (t/d) | 50-70 | 80-100 | 120-180 | 160-280 | 240-360 | 340-450 |
| Motor Power(kw) | 30-37 | 55 | 75-90 | 132 | 185 | 200 |
