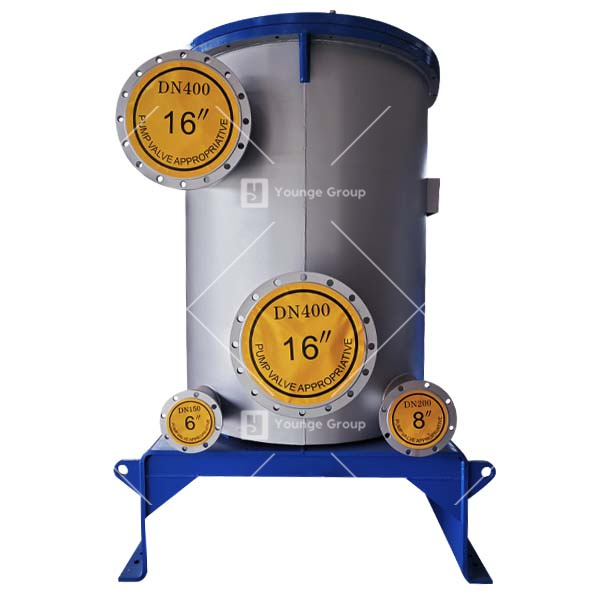

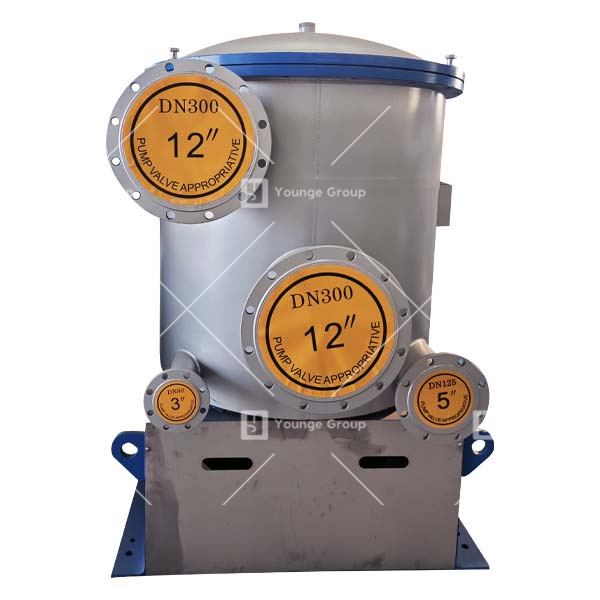

Paper Manufacturing Machine Plant Coarse Screen MC Pressure Screen Paper Pulp Machine
It is suitable for heat screening of wood pulp or straw pulp, rough screening or fine screening of chemical pulp
and waste pulp. Compared with the general low concentration pressure screen, the medium concentration pressure
screen has the characteristics of strong adaptability, energy saving, water saving and high production efficiency.
Realize Mid consistency screening in pulp making system, simplify flow sheet, save water and reduce power consumption.
Automatic controlling system in pipe line improves the production efficiency.
Multi wing block design, no winding, mild pulse, clean pulp screening, high pulse frequency and large production capacity.
It has the advantages of less thickening in screening area, high screening efficiency and long screen basket life.
| Model | ZNS20 | ZNS21 | ZNS22 | ZNS23 | ZNS24 | ZNS25 | ZNS26 | ZNS27 | ZNS28 | ZNS29 |
| Screen Area(m²) | 0.25 | 0.38 | 0.76 | 1.06 | 1.42 | 1.88 | 2.27 | 2.95 | 3.54 | 4.83 |
| Inlet Consistency(%) | 1-4 | |||||||||
| Capacity-Hole (T/D) | 30-40 | 50-80 | 90-160 | 135-250 | 180-320 | 220-420 | 260-500 | 300-600 | 400-700 | 500-1000 |
| Capacity-Slot(T/D) | 20-30 | 30-50 | 60-100 | 90-150 | 120-190 | 150-210 | 200-300 | 250-400 | 300-450 | 320-730 |
| Inlet Pressure (MPa) | 0.15-0.4 | |||||||||
| Motor Power(Kw) | 15-22 | 11-37 | 22-75 | 30-90 | 37-110 | 25-132 | 55-160 | 75-200 | 75-220 | 132-280 |
