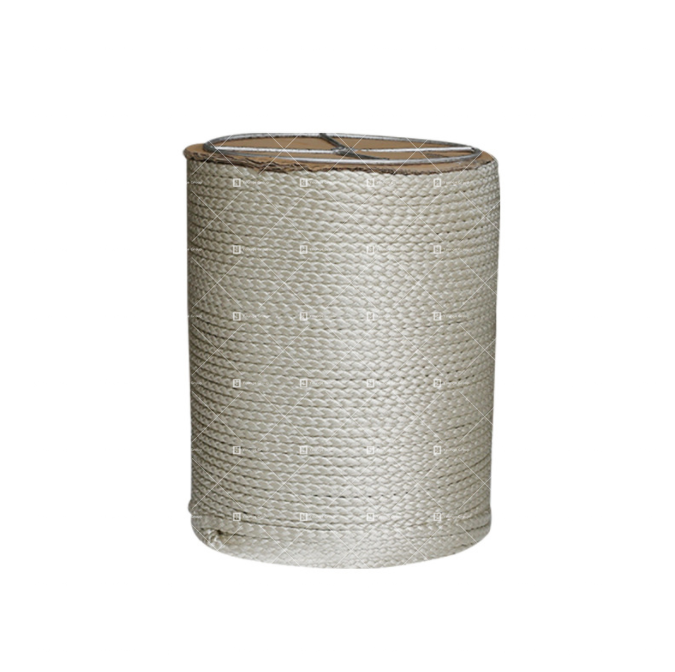

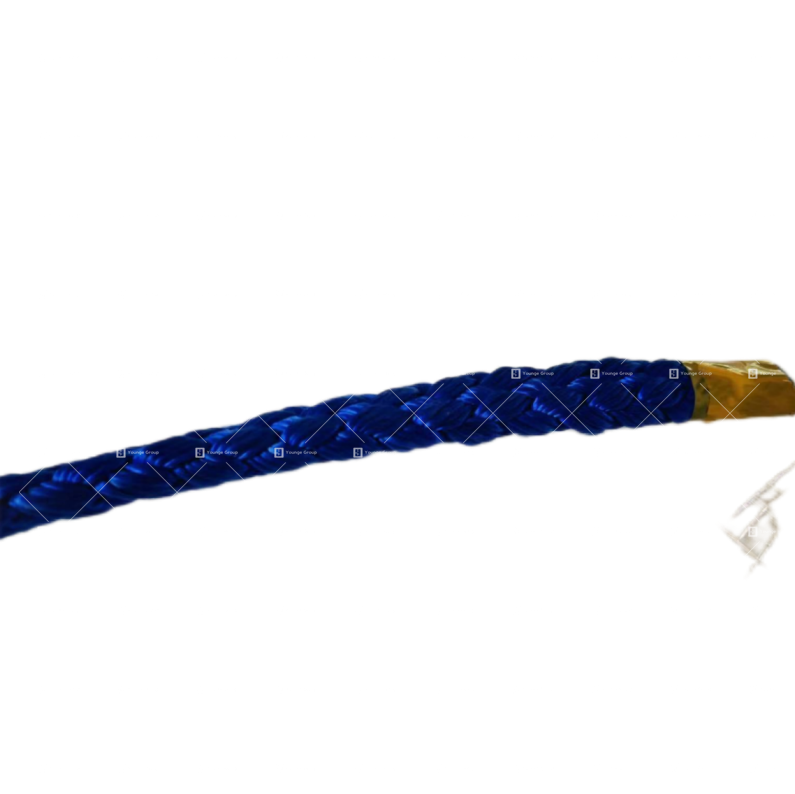

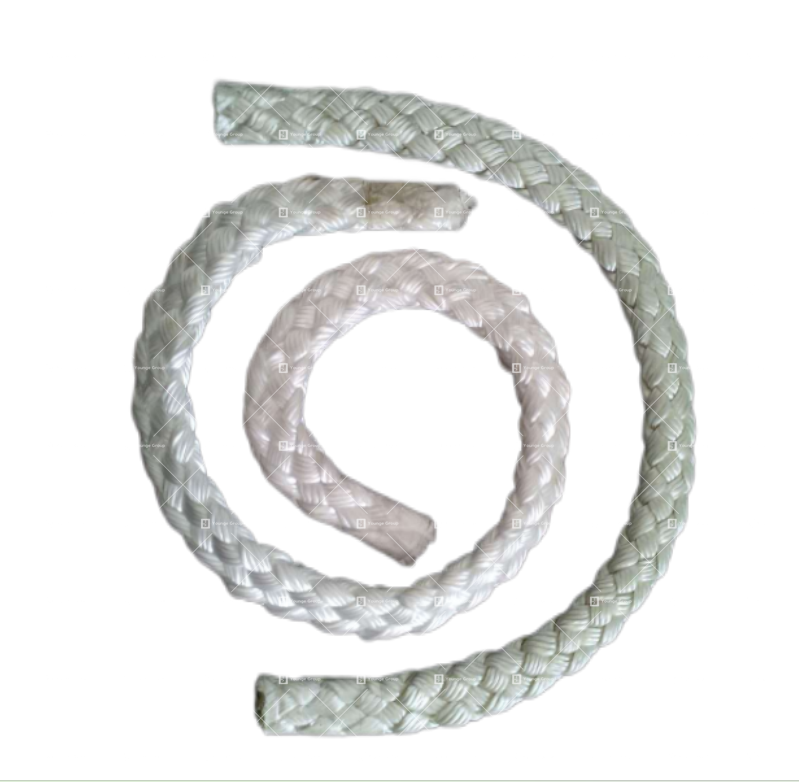

The paper guide rope is a rope specially used for the paper guide mechanism of the paper machine. It plays a role in guiding and transferring in the papermaking process, ensuring that the paper can move smoothly from one link to another.
Name: Paper rope
Material: Dupont wire

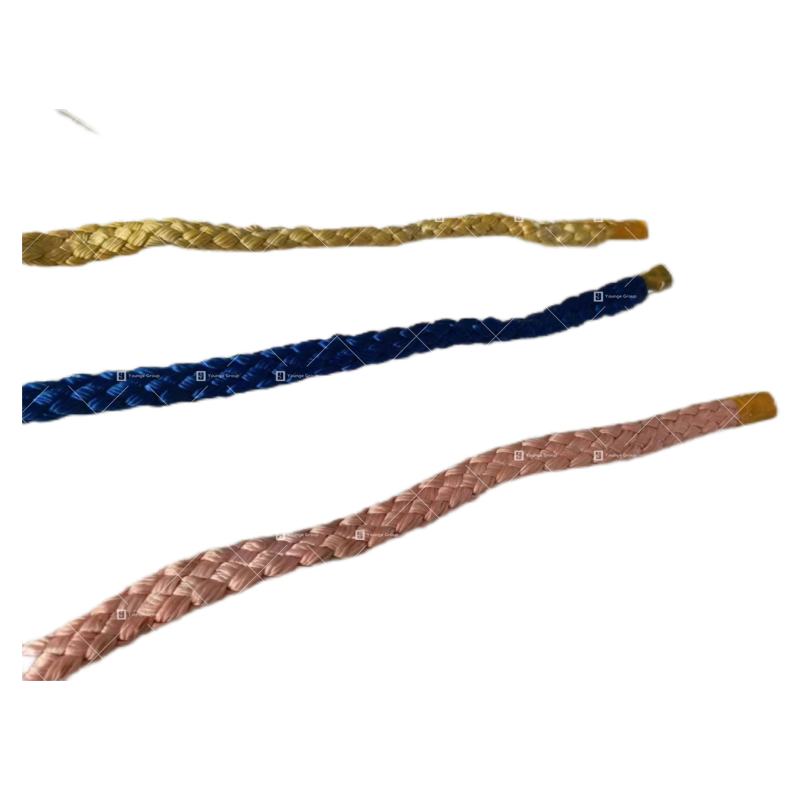

Color: yellow, blue, pink, white, customizable
Diameter specification: 10/12/14/16/18
Not easy to wear and break, dyed, wax dipped
1. Not easy to corrode
DuPont silk can resist the erosion of general acidic or alkaline substances and can be used normally in harsh environments.
2. High temperature resistance of 180℃
Long-term high temperature resistance can reach 180℃, and short-term high temperature resistance can reach 280℃.
3. Strong tensile strength
The paper guide rope is made of DuPont silk, which has the characteristics of high strength, not easy to age, and strong tensile strength.
1. Inspection before use
Before using the paper rope, you need to carefully check whether it is intact and whether there is any breakage or wear. If there is any damage, stop using it and replace it with a new paper rope in time. In addition, you need to check whether the link part of the paper rope is firm and whether the joint is strong and reliable.
2. Correct operation method
When operating the paper rope, you need to follow the correct steps. For example, when connecting the paper rope, you should follow a specific joint method to ensure that the rope can be stably connected together and will not loosen during use. The length of the joint cannot be less than 50cm. When cutting the excess joint, cut it into an inclined surface to prevent the joint from being too thick.
3. Avoid excessive stretching and twisting
During the use of the paper rope, excessive stretching and twisting should be avoided, as this may cause damage to the internal structure of the rope, thereby affecting its carrying capacity. Especially when lifting cargo, the weight should be lifted and moved slowly and smoothly, and the impact force should be avoided, and the weight should not be hung on the paper rope for a long time.
4. Prevent damage from corners
When binding and hoisting, care should be taken to prevent corners from causing damage to the paper rope. For objects with corners, appropriate protective measures should be taken, such as using pads, to reduce damage to the paper rope caused by friction and collision.
5. Do not extend or lengthen the paper rope at will
The length of the paper rope is usually used according to the design and manufacturer’s recommendations, and the paper rope should not be extended or lengthened at will. Otherwise, this will not only affect the safety of the lifting operation, but may also cause the carrying capacity of the paper rope to decrease.
6. The effect of temperature on the performance of the paper rope
It should be noted that the ultimate working load of the chain will change with the change of ambient temperature. In a high temperature environment above 400 degrees, the paper rope should be used with caution.
7. Safe operation
When operating the paper rope, safety regulations must be followed to ensure that no one walks or works under the hoisted object. Before lifting, check carefully whether it is hung firmly, and it is strictly forbidden for personnel to stay under the hoisted object during lifting.
