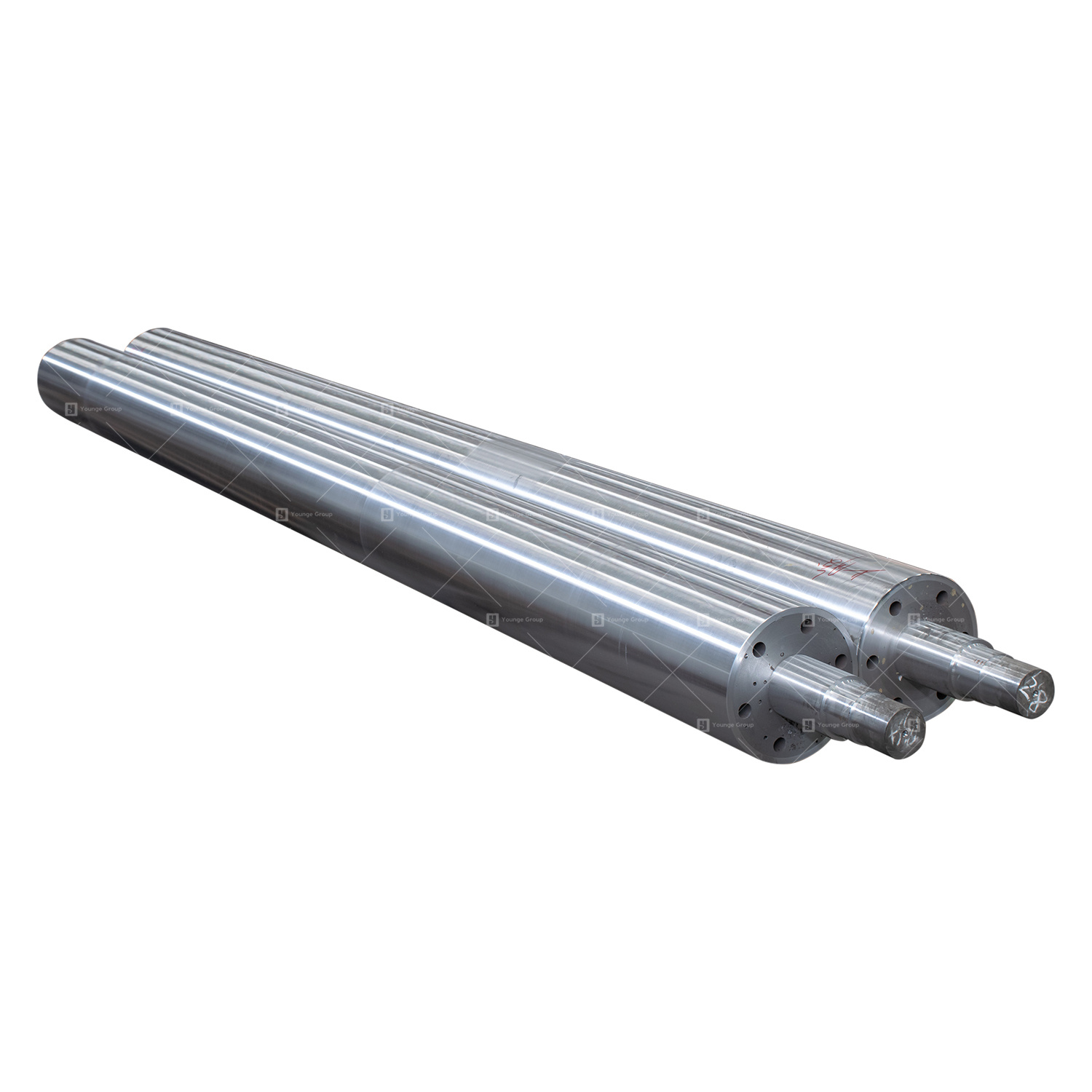

Paper machine dryer part guide roll

Introduction to the wire guide rollers in the drying cylinder section

The wire guide rollers in the drying cylinder section are part of the paper machine, mainly used to support and rely on the forming wire, transmit the driving force or operating tension of the wire section, and correct and tension. They are distributed between the drying cylinders to support and transfer paper sheets. The surface coatings of the wire guide rollers are mainly rubber, chrome plating, and smooth rollers used in the drying section.

Structural features

The structural feature of the wire guide roller is that bearing components are installed at both ends. When the paper machine is running, the wire guide rollers rotate with the operation of the paper sheets, playing a good role in transmission and guidance. In some specific cases, the wire guide rollers may also play the role of ventilation rollers.

Application range

The wire guide rollers have a wide range of applications. They are not only distributed between the drying cylinders, but also used in other parts of the paper machine, such as the wire section and the press section. Between the press section and the drying cylinder section, the wire guide rollers play a buffering role when guiding paper.
