The vacuum roller is an important dewatering component on the paper machine, mainly used in the wire section and press section.
Its main function is to dehydrate and transfer the paper web, which has a significant impact on increasing the vehicle speed, reducing the burden on the dryer cylinder, and reducing the steam consumption of the drying section.
1. The couch roller is the last dehydration device in the fourdrinier section. After the wet paper web passes through the vacuum water absorption box, it is further dehydrated on the couch roller to reach a certain dryness and have sufficient wet strength.
2. The dryness of the paper web reaching the couch roller is generally 11-12%, and the couch roller can increase the dryness to 18-25%.
3. The couch roller is also a major driving point in the fourdrinier section.

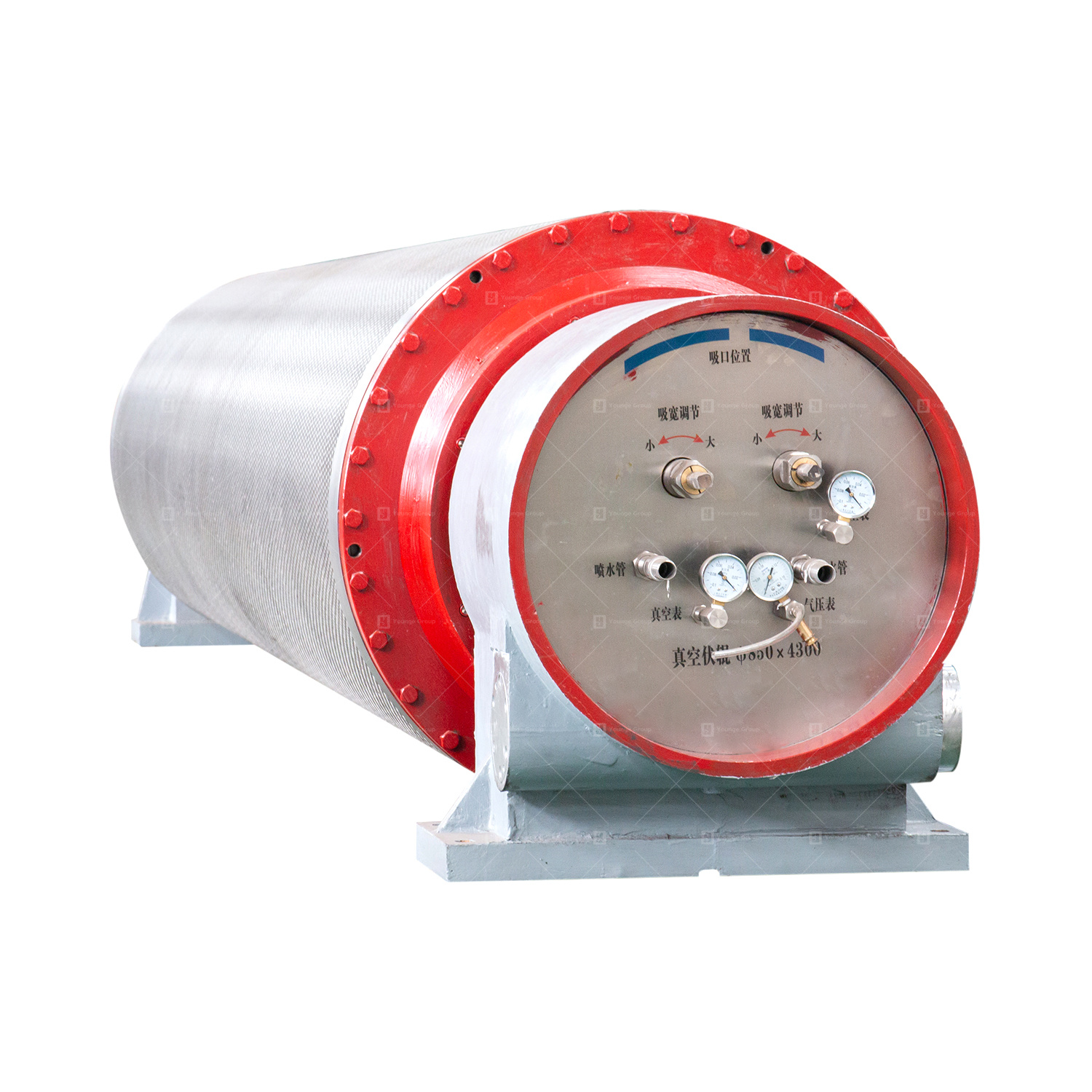

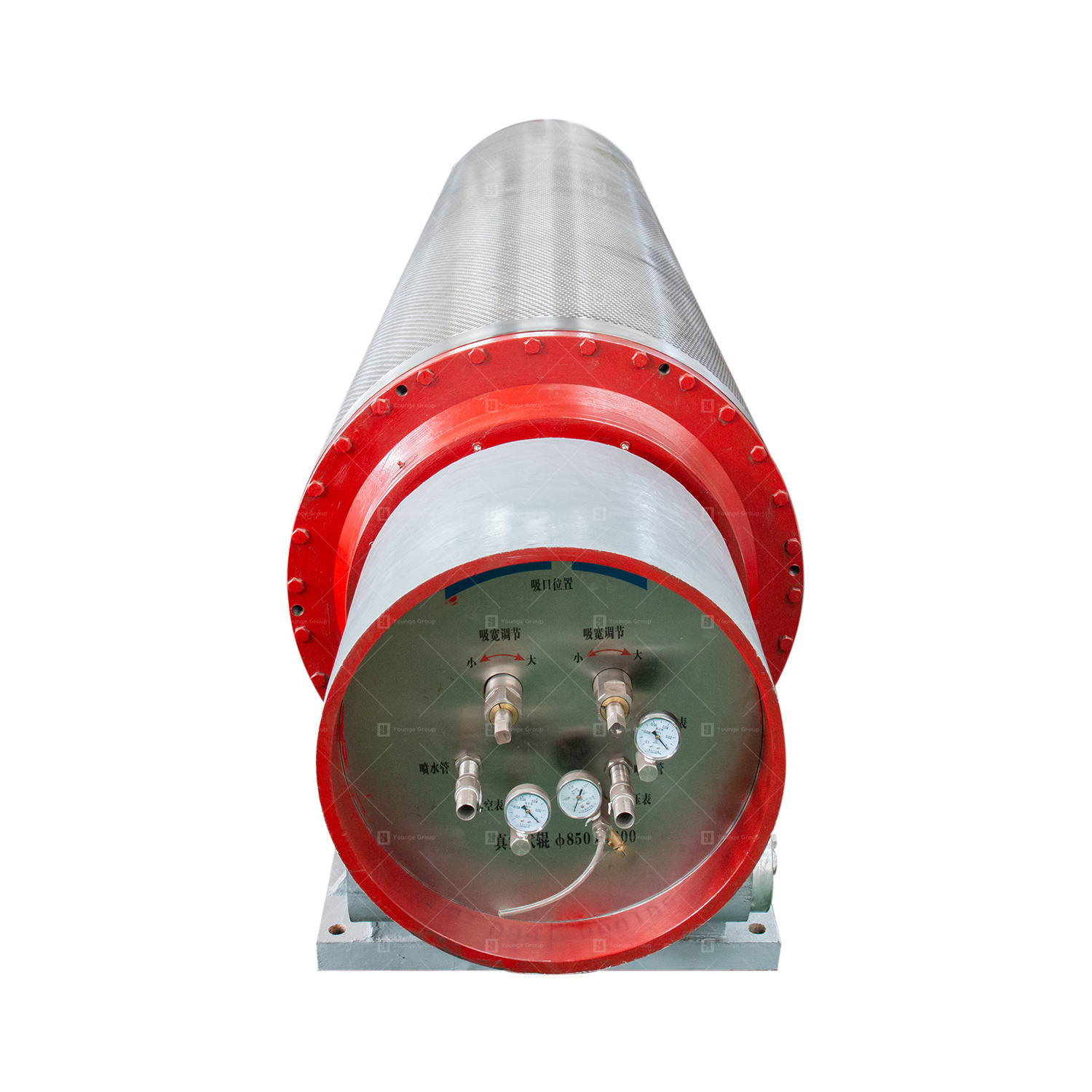

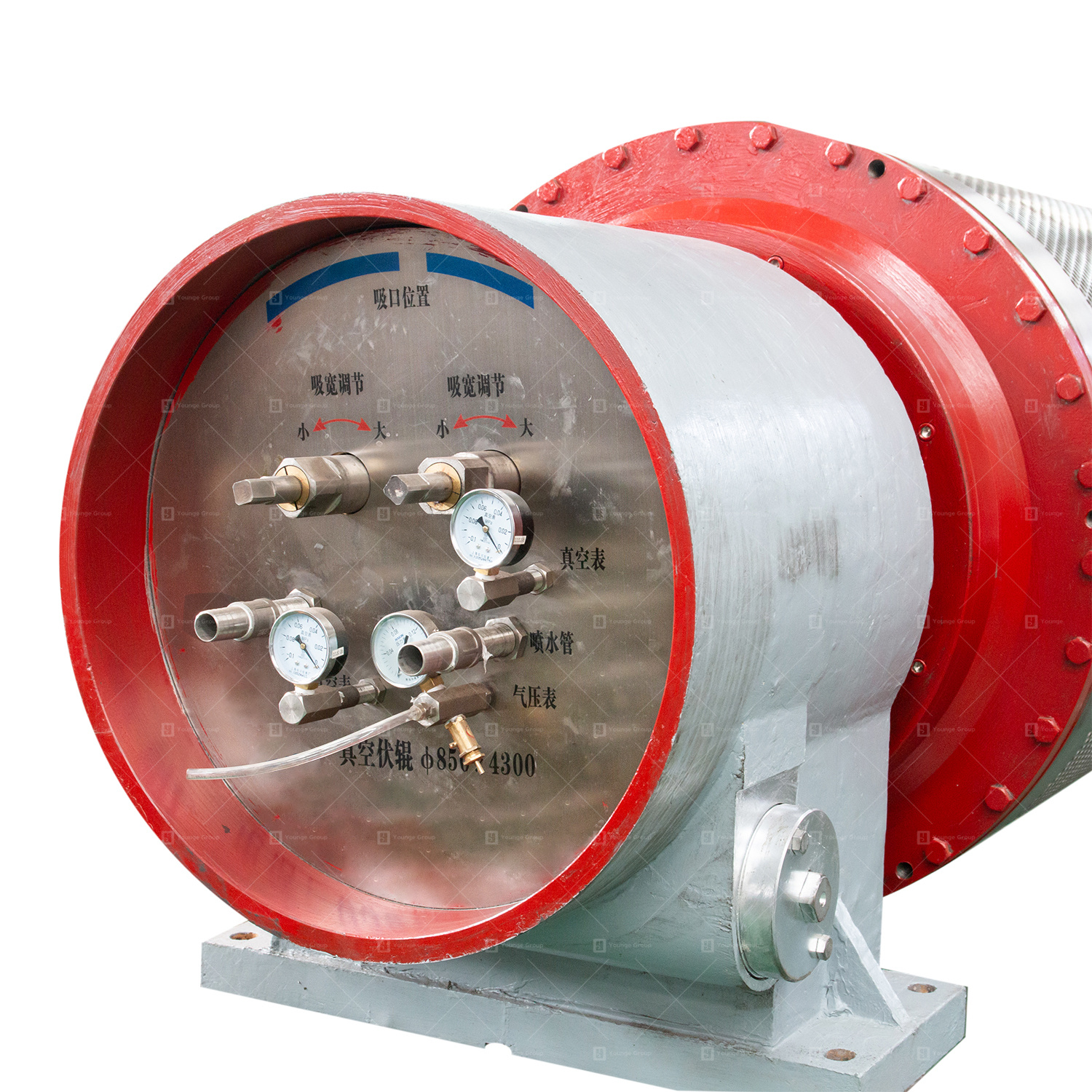

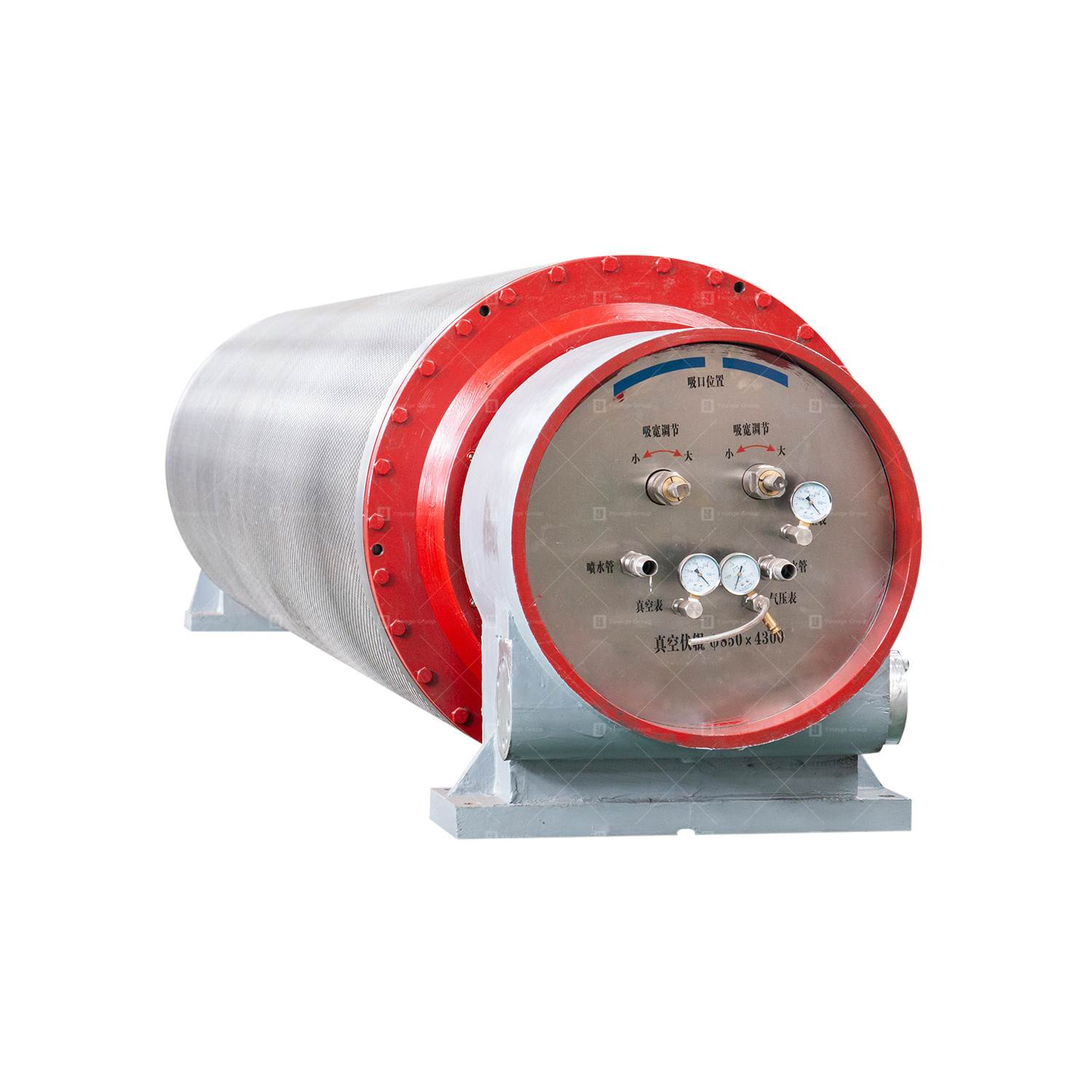

1. It consists of two major parts: the vacuum chamber and the roller shell.
2. The holes in the shell that contact the forming net are all countersunk round holes, and the holes on the roller shell must be kept clean.
3. A graphite sealing strip is used between the vacuum chamber and the inner wall of the roller shell.
4. There are single-chamber, double-chamber and three-chamber ones.
5. Sealing device: special pneumatic tire (imported product, with protective cover) and sealing strip (polymer polyethylene) pneumatic tire pressure 0.06-0.1MPa.
Roller material: 304 stainless steel plate rolling
Countersunk drilling roller body double helix, suction hole φ8mm, opening rate 24%; expansion hole φ13mm, opening rate 65%
Vacuum box body: stainless steel
