The papermaking spiral drying fabric is an auxiliary accessory specially used in the drying part of the papermaking machine. It plays a vital role in the papermaking industry.
Polyester spiral dryer mesh series is suitable for drying packaging paper, cultural paper, board paper and pulp board with large quantity. Polyester mesh belt is widely used in papermaking, coal mining, food, medicine, printing and dyeing and rubber products industries, and can also be used as conveyor belt and laminating machine supporting mesh belt.
High air permeability, easy to repair, smooth mesh surface and long service life.
Polyester spiral dryer mesh has the advantages of high air permeability, smooth mesh surface, arbitrary disassembly, good strength and long service life. Polyester mesh belt special material spiral dryer mesh also has the characteristics of high temperature resistance, high wear resistance and aging resistance.

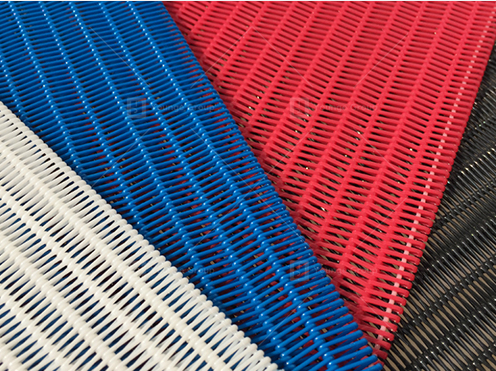

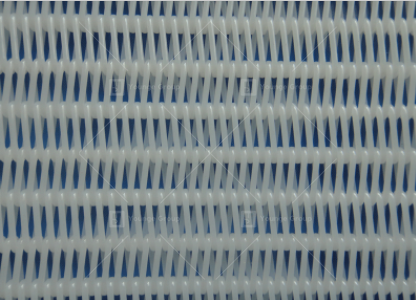

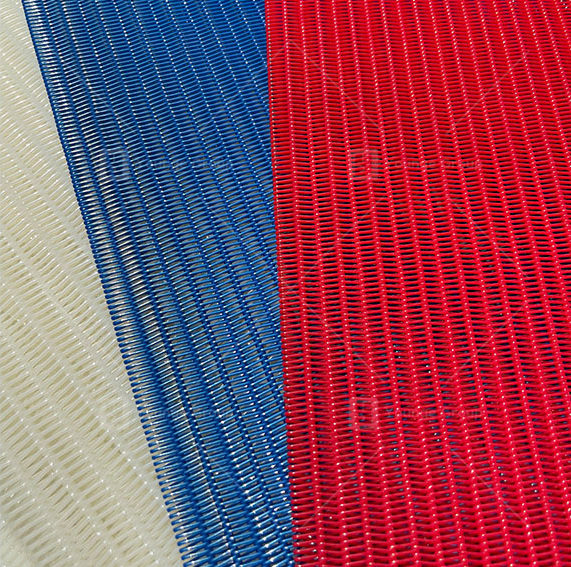

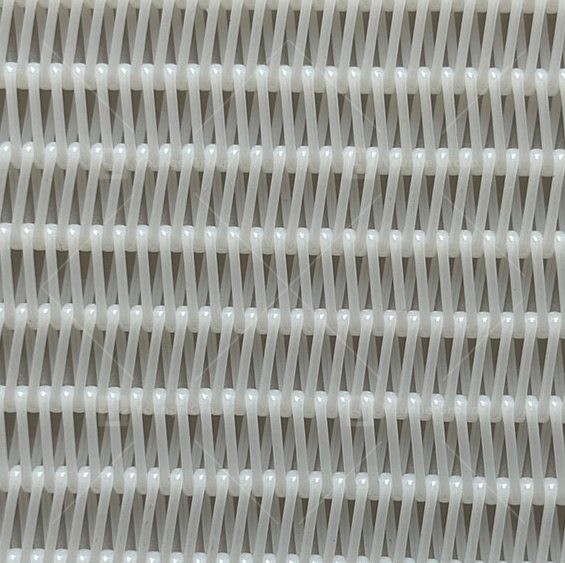

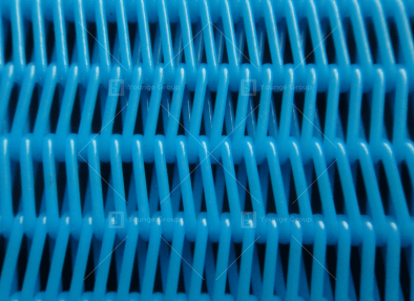

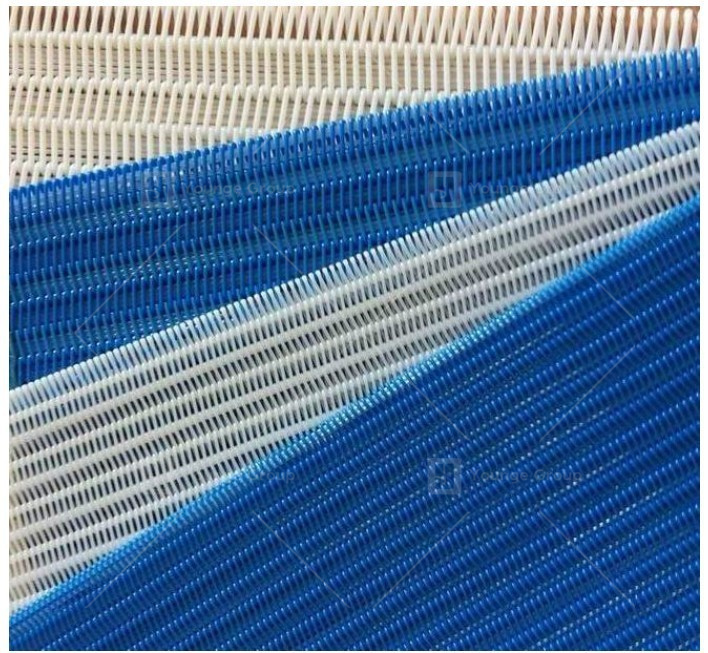

Polyester spiral dryer mesh is made of polyester monofilament wound into a spiral ring, and the spiral ring is connected together with weft to form a spiral mesh. The spiral mesh has a smooth surface, good air permeability, high temperature resistance and its own interface. It is widely used in drying of papermaking industry, production of composite fabrics, drying and transportation of food and medicine, etc. The emergence of spiral mesh effectively guarantees the continuous production of modern industrial equipment and greatly improves production efficiency.
Mainly used for paper drying in paper mills and textile printing and dyeing products, suitable for vehicle speeds below 600m/s. Polyester mesh belt is suitable for the bottom mesh of horizontal belt vacuum pulp washing machine (instead of rubber belt).
| Type | Spiral loop width mm |
Tensile strength N/cm |
weight kg/m |
Thickness mm |
Air permeabilty m²/m²h |
CFM 127/pa |
||
| Soiral ring monofilamen mm |
Connection wire mm |
|||||||
| 5080A | 5.2 | 0.50 | 0.80 | 1800 | 1.0 | 2.1 | 15000 | 937 |
| 6890A | 8 | 0.68 | 0.90 | 2000 | 1.31 | 2.45 | 18000 | 1125 |
| 68908 | 7.15 | 0.68 | 90 | 2000 | 1.40 | 2.45 | 16000 | 1000 |
| 9090A | 8 | 0.90 | 0.90 | 2300 | 1.80 | 303 | 19000 | 1188 |
| PPS90908 | 648 | 0.90 | 0.90 | 2000 | 1.90 | 3.30 | 14000 | 875 |
| PPS9090C | 8.30 | 0.90 | 90 | 2000 | 1.74 | 350 | 19000 | 1188 |
| 90110A | 10 | 0.90 | 1.1 | 2300 | 1.65 | 3.15 | 20000 | 1250 |
| 10090A | 8 | 1.0 | 0.90 | 2000 | 2.0 | 360 | 17000 | 1060 |
| 120130A | 1.,2 | 1.20 | 1.30 | 2600 | 2.35 | 4.30 | 22000 | 1375 |
