Paper Machine Buying guide
In order to recommend paper machine and make detailed technical proposal for you as soon possible ,
please tell usthe following technical parameters:
(1)what kind of paper do you want to produce?
(2)what kind of raw material you will use?
(3)how many tons do you want to produce per day(24hours)?
(4)what is the output paper width of jumbo roll?–mm;
(5)What is the output paper weight(thickness)?–gsm.
Thanks for your cooperation!
Paper production line can use waste paper,pure wood pulp,wheat straw ,rice straw sugarcane bagasse,cottonas material to make high quality paper(depends on client’s requirement).Output product is paper roll, paper sheet, then through paper converting machines,we can get the final paper product you want.
| Main products | Fluting paper Corrugated Paper Testliner Paper Kraft Paper Duplex Board Paper |
| Test liner Ration | 60-1000g / m2 |
| Capacity | 10-1000t/d |
| Net paper width | 1575-6500mm |
| Gross paper width | 1575-6500mm |
| Working speed | 80-750 m / min |
| Design speed | 150-950 m / min |
| Gauge | 1800-8500 mm |
| Roll of dynamic balance | G2.5 |
| Cylinder of dynamic balance | G4 |
| Batch-off roll of dynamic balance | G1.6 |
| Drive mode | AC motor variable frequency speed regulation segment drive |
| Paper machine layout form | Single layer layout |
| Pattern | Left/Right hand machine |
| Banner moisture difference | ≤±1% |
| Banner quantitative difference | ≤±1.5% |
All customzied
| Paper dryness out of wire part | 20-22% (± 1%) |
| Paper dryness out of press section | 44-46% (± 1%) |
| Before sizing | 92% |
| Paper roll machine | 92% |
| Lateral shrinkage | About 3.5% |

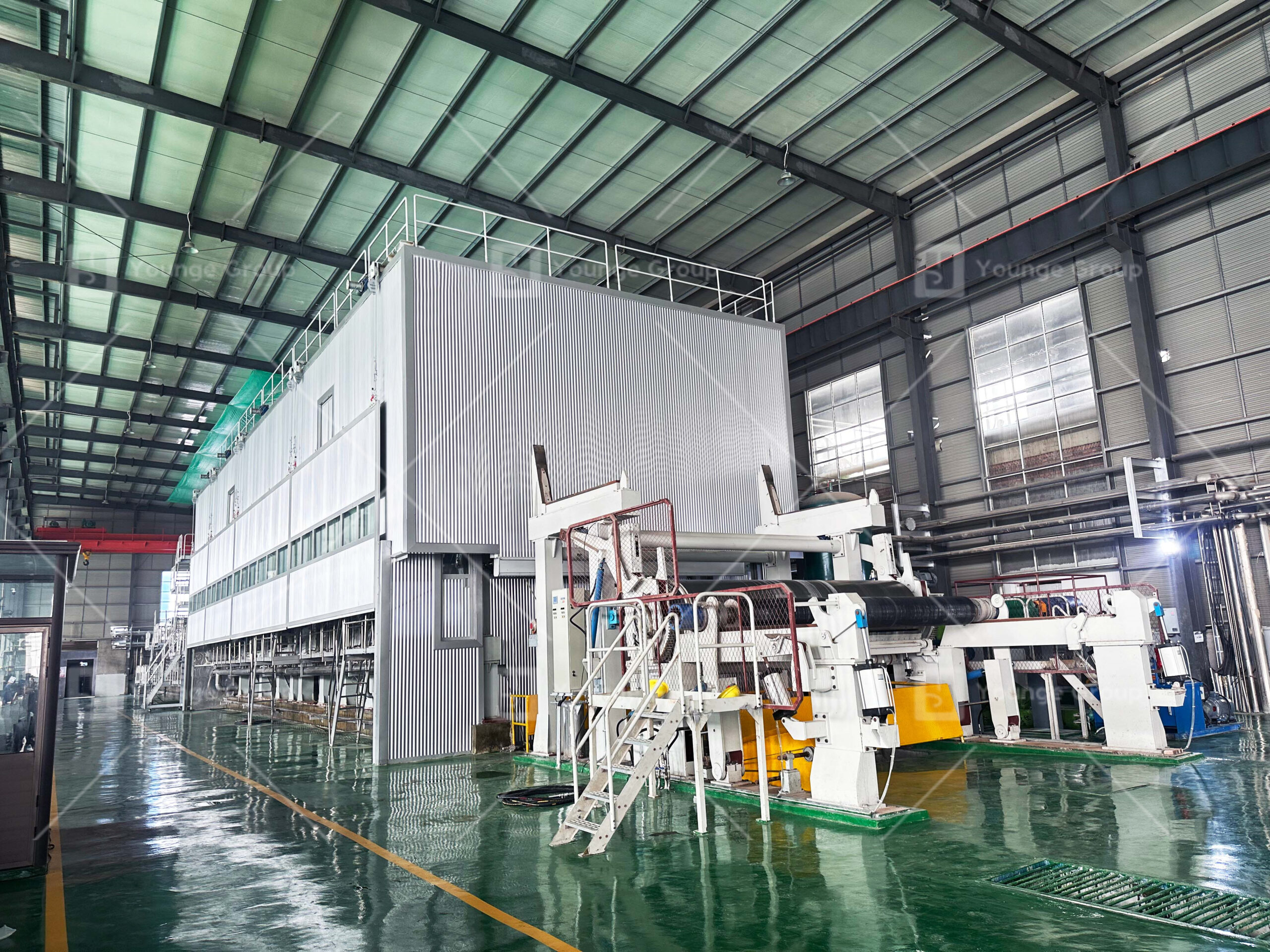

1. The paper machine is mainly divided into the following parts: Headbox, Fourdrinier Wire Section, Press Section, Front Dryer Section, Beveled Surface Sizing Machine, Back Dryer Section, Reeling Section.
2. Headbox:
Air-cushion headbox, by controlling the gas pressure inside the headbox to control and stabilize the pulping pressure head.
3. Wire Section:
Single fourdrinier wire, the main components: breast roll, forming plate, dehydration board, vacuum box, vacuum couch roll,wire-driving rollers, wire-guiding roll and rack, etc, and equipped with a piece of forming wire.
4. Press Section:
It is divided into 1st press, 2nd press. 1st press is the press with large diameter roll with a vacuum suction roller,equipped with two coating metal rollers, and with upper felt and lower felt; 2nd press is large diameter roll, equipped with two coating metal rollers, and with upper felt and lower felt. 1st press, 2nd press are equipped with leading felt roller and felt suction box. 1st press, 2nd press pressurized way is oil hydraulic cylinder pressure.
5. Front Dryer Section:
1800 dryer cylinder, group drive, each group with dryer wire, wire-guiding roll. Equipped with semi-enclosed gas hood.
6. Beveled Surface Sizing Machine:
Equipped with a surface chrome-plated metal roller, a coating metal roller. The surface sizing press machine pressurized way is corrugated tire pressure.
7. Back Dryer Section:
1800 dryer cylinder, group drive, each group with dryer wire, carrier roll. Equipped with semi-enclosed hood.
8. Reeling Section:
Pneumatic horizontal reeling machine.
9. Rewinder section
