The density cleaner is divided into: high-concentration, medium-concentration, and low-concentration. It mainly removes heavy impurities in waste paper, such as gravel, gravel, sand, broken glass, staples, small iron pieces, etc. The pulp enters from the pulp inlet and forms a rotating pulp flow along the backflow head. Due to the pressure difference between the pulp inlet and the pulp outlet conduit, the coarse pulp moves downward and centripetally while rotating, and the heavy impurities that obtain greater centrifugal force due to high-speed rotation move in a direction perpendicular to the inner wall of the vertebral body, and under the action of gravity, they gather in the lower part of the vertebral body and enter the slag collecting chamber.
Product Introduction

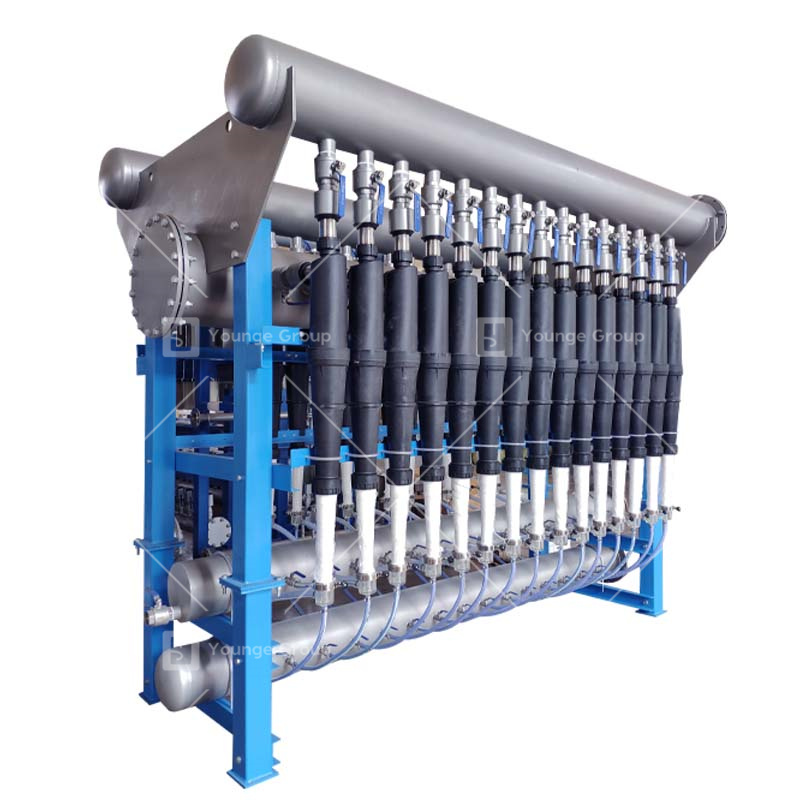

YFK-550 centricleaner is a new generation of high-efficiency multifunctional items developed by Tianli Machinery based on widely absorbing abroad advanced purification technology.
The product adopts a professional entrance design with a high surface
finish, so that the discharging rate tends to be the lowest under high impurity removal efficiency, and the fiber loss is completely reduced.
It is especially suitable for removing sand, dust, rust, and other small heavy impurities in the pulp.
YFK-550 multifunctional centricleaner has a professional design of inlet and outlet as well as the cone
angle, which ensures that a stable vortex can be formed under a
certain inlet pressure.
Compared with the traditional centricleaners, it has an obvious energy-saving effect and reduces the purification system maintenance costs.
Main Technical Data
| Main Technical Data
|
|
| Feeding flow | 550-600 L/min |
| Feeding pressure | 0.32-0.40 MPa |
| Press drop | 0.14 MPa |
| Volume reject removal rate | 10-15%(relative to feeding flow) |
