The density cleaner is divided into: high-concentration, medium-concentration, and low-concentration. It mainly removes heavy impurities in waste paper, such as gravel, gravel, sand, broken glass, staples, small iron pieces, etc. The pulp enters from the pulp inlet and forms a rotating pulp flow along the backflow head. Due to the pressure difference between the pulp inlet and the pulp outlet conduit, the coarse pulp moves downward and centripetally while rotating, and the heavy impurities that obtain greater centrifugal force due to high-speed rotation move in a direction perpendicular to the inner wall of the vertebral body, and under the action of gravity, they gather in the lower part of the vertebral body and enter the slag collecting chamber.

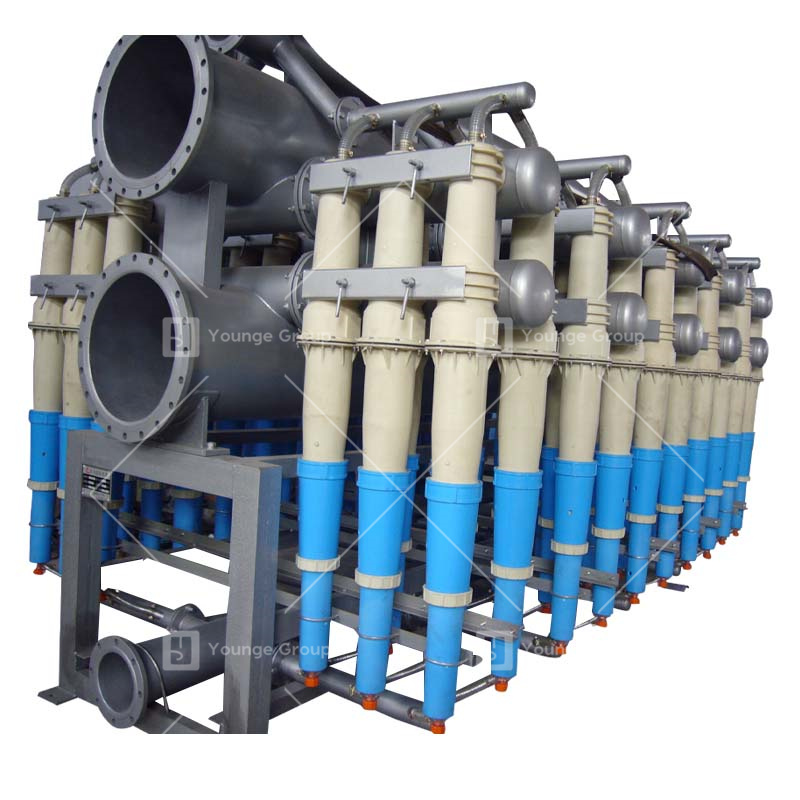

YMLC-700 multifunctional centricleaner is a modern type of multifunctional pulp cleaning equipment, which is designed by our company,
based on the domestic and abroad advanced.
It uses the centrifugal principle to remove various light and heavy impurities in the pulp. It has a new feeding design,
which is combined with the accelerated flow and long residence time. This design
featured the centricleaner with a high cleaning effect.
It can be used in the pulp purification system to remove light and heavy impurities such as mixed waste,
paraffin, adhesive, plastic sheet, foam, gas, sand and iron chips in the pulp.
Main Technical Parameters
| Main Technical Parameters |
| Nominal Feeding Flow 500-700 L/min |
| Nominal Fooding Prossuro 0.32-0.35 MPa |
| Feeding Density 0-2.0% |
| Volume Heavy Reject Removal Rate 6-8%(relative to feeding flow)
Volume Light Reject RemovalRate 10-12%(relative to feeding flow) |
